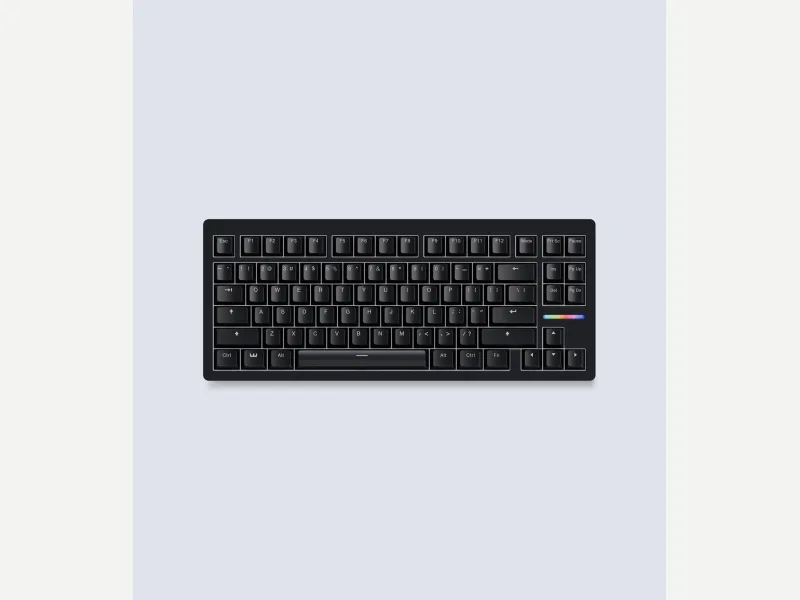

Wooting 80HE

Wooting

Wooting 80HE

Released 2024

Researched from maker specs and published sources. Last checked Oct 18, 2026.

Wooting's 80% Hall effect board with a gasket mount and 8 kHz polling

A wired 80% Hall effect keyboard with Lekker L60 V2 switches, a silicone gasket mount, a polycarbonate plate and true 8 kHz polling, in recycled ABS or zinc. Reviewers praise the software and build, and fault the wired-only design, non-standard layout and some chassis flex.

Hall effect Rapid Trigger 8000Hz Lekker switches Gasket mount Adjustable actuation

Our take, based on research

A well-reviewed competitive 80% that Tom's Guide and WIRED rate highly for software and build. Choose it for 8 kHz and Wootility; consider the 80HE+ if you want Wooting's newer switches and plate, or another brand if you need wireless.

Overview

Wooting's page describes the 80HE as its most complete keyboard: Lekker L60 V2 switches, true 8 kHz polling (Tachyon mode in Wootility, about 0.125 ms), Rapid Trigger, 0.1 mm actuation steps and an LED bar. The mounting is a silicone gasket between the PCB assembly and the switch plate, which is polycarbonate, with screw-in stabilizers. The case is post-consumer-recycled ABS (790 g) or zinc alloy (2,160 g), 346 x 142 mm, 19.4 mm high at the front without keycaps. Interchangeable silicone feet give 2.8, 6 or 10 degrees, up to four profiles are stored on the board, and the warranty is four years excluding the LEDs. Wooting's page now points to an updated 80HE+.

Tom's Guide called it a fantastic gaming keyboard with premium build, beautiful typing feel and excellent software, but wired only, with a non-standard PCB that limits aftermarket parts, and rivals that cost less; for wireless, typing or modding it suggested other boards. WIRED scored it 9 out of 10 after testing the zinc version. It called Wootility a standout, found the default polling 1,600 Hz with Tachyon mode giving 8,000 Hz at the cost of animated RGB, and disliked the layout compared with a standard TKL. PCWorld praised the smooth pre-lubricated switches, insulation and hot-swappable PCB, but noted a rattling spacebar, mediocre finish in places and inflexible silicone feet that attract dust. PC Gamer found it capable and powerful but said the plastic chassis has some flex, and that the Snappy Tappy and Rappy Snappy SOCD features had to be left out in some games.

Pros & Cons

Strengths
  • True 8 kHz polling in Tachyon mode, with Rapid Trigger and 0.1 mm actuation steps (Wooting, WIRED)
  • Wootility runs in the browser or as an app and was praised by both Tom's Guide and WIRED
  • Gasket mount with a polycarbonate plate and screw-in stabilizers; Tom's Guide called the typing feel beautiful
  • Three interchangeable feet (2.8, 6 and 10 degrees), unusual for a metal-cased board (WIRED)
  • ABS (790 g) or zinc (2,160 g) cases, hot-swappable PCB (PCWorld)
  • Four onboard profiles and a four-year warranty excluding the LEDs (Wooting)
What Could Be Better
  • Wired only (Tom's Guide)
  • Non-standard 80% layout and PCB limit aftermarket parts (Tom's Guide, WIRED)
  • PC Gamer found some chassis flex on the plastic case; PCWorld noted a rattling spacebar and uneven finish
  • Tom's Guide and PC Gamer both noted rivals that cost less
  • Lekker switches only, with limited switch choice (Tom's Guide)
  • Wooting now sells an updated 80HE+ with Tikken switches and an FR4 plate

Who Is This For?

Perfect For
  • Competitive FPS players who want an 80% board with an F-row and arrows
  • Gamers who value software depth and onboard profiles
  • Players who want a gasket-mounted Hall effect board that also types well
Maybe Not For
  • Wireless users
  • Modders who want a standard PCB and layout
  • Buyers who want the newest Wooting hardware, which is the 80HE+

Where to Buy

Specifications
Full technical details

Dimensions

346 x 142mm

Weight

790g ABS, 2160g zinc

Case Material

PCR ABS, or zinc alloy

Connectivity

Wired


Mounting Style Gasket
Typing Angle 2.8° / 6° / 10°
Front Height 19.4mm without keycaps
Switch Type Hall Effect
Profile Standard
Keycaps PBT, ABS, or dye-sub options
PCB Hot-swap Lekker, per-key RGB
Compatible Switches Wooting Lekker Hall effect

Plate Options

PC

Case Colors

Black Ghost Frost Zinc options

Software Support

Wootility

NKRO
RGB
